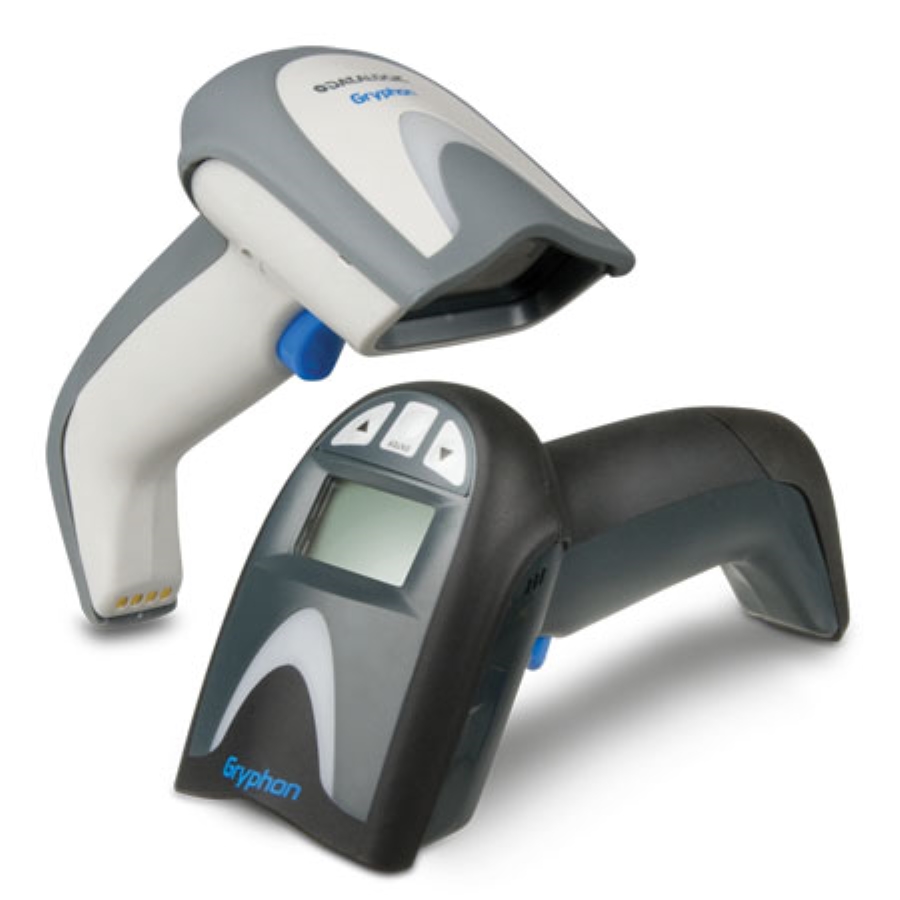

Gryphon I GM4100

The Gryphon family represents the premium line of Datalogic ADC’s general purpose handheld data collection products. The Gryphon GM4100 cordless linear imaging readers offer the richest feature set among general purpose product offerings.

Extremely versatile and durable, the Gryphon GM4100 cordless linear imaging readers are the ultimate solution for applications in retail and light industrial environments where mobility is necessary for improved productivity. Mobile communications also eliminate the restraints caused by cabled devices, providing a safer and more efficient environment for employees.

Narrow band radio communications with Datalogic’s STAR Cordless System™ is the key to increased productivity and flexibility in the workplace. The GM4100 reader series offer scalable solutions from simple point-to-point applications to point-to-multipoint installations with up to 16 readers connected to the same base station.

Datalogic’s new, patented 2-position cradle provides multiple solutions to answer different functional and reduced space requirements. It provides hands-free reading capabilities and a scan-while-charging feature to ensure constant up-time for increased productivity.

GM4100 Batch Mode capability allows thousands of codes to be stored in memory. This feature combined with a long lasting 50K scans per charge Lithium-Ion battery allows unlimited mobility and reliable data collection when out-of-range from the base station.

Standard multi-interface capabilities (GM4130) provide host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation while IBM interface models (GM4110) provide connectivity via IBM 46XX, USB and RS-232 emulation.

Features

  • Fastest speed-to-read: 325 reads/second
  • Radio frequencies available in 433 MHz or 910 MHz
  • Radio Range (open air) up to 30.0 m / 98.4 ft for 433 MHz, up to 15.0 m / 49.2 ft for 910 MHz
  • Optional display with 3-Key keypad
  • Point-to-point and multi-point transmission
  • Datalogic's patented 2-position cradle with Scan-While-Charging capability
  • Datalogic’s patented ‘Green Spot’ technology for good-read feedback
  • Optional Counterfeit Detection
  • USB Certified Kits Available

Gryphon I GM4100 Models and Kits
Gryphon GM4100, 433 Mhz, Black - Not for use in the USGM4100-BK-433
Gryphon GM4100, 433 Mhz, Health CareGM4100-HC-433
Gryphon GM4100, 433 Mhz, White - Not for use in the USGM4100-WH-433
Gryphon GM4100, 910 Mhz, Health CareGM4100-HC-910
Gryphon GM4100, 910Mhz, Black, Scanner OnlyGM4100-BK-910
Gryphon GM4100, 910Mhz, White, Scanner OnlyGM4100-WH-910
Gryphon GM4130, 433 Mhz, Kit, RS232, Black (Incl. base station BC4030-BK-433, Power Supply, and cable 90G000008) Not for use in the USGM4130-BK-433K2
Gryphon GM4130, 433 Mhz, Kit, RS232, White (Incl. base station BC4030-WH-433, Power Supply and cable 90G000008) Not for use in the USGM4130-WH-433K2
Gryphon GM4130, 433 Mhz, Kit, USB, Black (Incl. base station BC4030-BK-433 and cable 90A052044) Not for use in the USGM4130-BK-433K1
Gryphon GM4130, 433 Mhz, Kit, USB, White (Inlc. base station BC4030-WH-433 and cable 90A051945) Not for use in the USGM4130-WH-433K1
Gryphon GM4130, 910 Mhz, Kit, RS232, Black (Incl. base station BC4030-BK-910, Power Supply, Line Cord, and cable 90G000008)GM4130-BK-910K2
Gryphon GM4130, 910 Mhz, Kit, RS232, White (Incl. base station BC4030-WH-910, Power Supply, Line Cord, and cable 90G000008)GM4130-WH-910K2
Gryphon GM4130, 910 Mhz, Kit, USB, Black (Incl. base station BC4030-BK-910 and cable 90A051945)GM4130-BK-910K1
Gryphon GM4130, 910 Mhz, Kit, USB, White (Incl. base station BC4030-WH-910 and 90A051945)GM4130-WH-910K1

Base Stations
Base/Charger, 433 Mhz, BC4010, Multi-Interface, Black, Not for use in the USBC4010-BK-433
Base/Charger, 433 Mhz, BC4010, Multi-Interface, Counterfeit Detection, Black, Not for use in the USBC4010-BK-433-CF
Base/Charger, 433 Mhz, BC4010, Multi-Interface, IBM, White, Not for use in the USBC4010-WH-433
Base/Charger, 433 Mhz, BC4030 Multi-Interface, Black, Not for use in the USBC4030-BK-433
Base/Charger, 433 Mhz, BC4030, Multi-Interface, Health Care, Not for use in the USBC4030-HC-433
Base/Charger, 433 Mhz, BC4030, Multi-Interface, White, Not for use in the USBC4030-WH-433
Base/Charger, 910 Mhz, BC4010, Multi-Interface, IBM, BlackBC4010-BK-910
Base/Charger, 910 Mhz, BC4010, Multi-Interface, IBM, WhiteBC4010-WH-910
Base/Charger, 910 Mhz, BC4030, Multi Interface, Health CareBC4030-HC-910
Base/Charger, 910 Mhz, BC4030, Multi-Interface, BlackBC4030-BK-910
Base/Charger, 910 Mhz, BC4030, Multi-Interface, WhiteBC4030-WH-910
Base/Charger, 910Mhz, BC4010, IBM Interface, Counterfeit Detection, Black (Requires 12V Power Supply Part Number 90ACC1920)BC4010-BK-910-CF
EASEOFCARE Agreements
Gryphon I GM4100 EofC 2 Days Comprehensive, 1 Year RenewalW-GM41-R
Gryphon I GM4100 EofC 2 Days Comprehensive, 3 YearsW-GM41-3
Gryphon I GM4100 EofC 2 Days Comprehensive, 5 YearsW-GM41-5
Gryphon I GM4100 EofC 5 Days, 1 Year RenewalE-GM41-R
Gryphon I GM4100 EofC 5 Days, 3 YearsE-GM41-3
Gryphon I GM4100 EofC 5 Days, 5 YearsE-GM41-5
Gryphon I GM4100 EofC Overnight Replacement Comprehensive, 1 Year RenewalQ-GM41-R
Gryphon I GM4100 EofC Overnight Replacement Comprehensive, 3 YearsQ-GM41-3
Gryphon I GM4100 EofC Overnight Replacement Comprehensive, 5 YearsQ-GM41-5
GRYPHON I GM4XXX BASE EofC 2 DAYS COMPREHENSIVE, 3 YRSW-BC4-3
GRYPHON I GM4XXX BASE EofC 2 DAYS COMPREHENSIVE, 5 YRSW-BC4-5
GRYPHON I GM4XXX BASE EofC 2 DAYS COMPREHENSIVE, RENEWALW-BC4-R
GRYPHON I GM4XXX BASE EofC 5 DAYS, 3 YRSE-BC4-3
GRYPHON I GM4XXX BASE EofC 5 DAYS, 5 YRSE-BC4-5
GRYPHON I GM4XXX BASE EofC 5 DAYS, RENEWALE-BC4-R
GRYPHON I GM4XXX BASE EofC OVERNIGHT REPLACEMENT COMPREHENSIVE, 3 YRSQ-BC4-3
GRYPHON I GM4XXX BASE EofC OVERNIGHT REPLACEMENT COMPREHENSIVE, 5 YRSQ-BC4-5
GRYPHON I GM4XXX BASE EofC OVERNIGHT REPLACEMENT COMPREHENSIVE, RENEWALQ-BC4-R
MINIMUM REPAIR CHARGE,GM/GBT 4XXX Base34922-80
MINIMUM REPAIR CHARGE,GM41XX34913-80
WHOLE UNIT REPAIR, GM/GBT 4XXX BASE34922-81
WHOLE UNIT REPAIR,GRYPHON GM41XX34913-81
Batteries/Battery Chargers
Battery Pack, RemovableRBP-GM40
Charging Only Base Station, BlackCHR-GM40-BK
Charging Only Base Station, WhiteCHR-GM40-WH
Cables
Cable, IBM 46xx, Port 9B, CAB-446, 12 ft., Coiled90A052042
Cable, IBM AT/XT, KBW, Din Connector, Straight, CAB-322, 7 ft.90G001020
Cable, IBM PS/2, KBW, Minidin Connector, Coiled, CAB-365, 6 ft.90A051360
Cable, IBM PS/2, KBW, Minidin Connector, External Power Supply, Coiled, CAB-391, 11 ft.90A051740
Cable, IBM VDT. 3151, 34XX, KBW, 8-pin Telephone Connector, Straight, CAB-325, 11 ft.90G001050
Cable, KBW, 4P, Telephone Connector, DEC VDT VT200/220/240/300/320/340/420, CAB-375, 6 ft.90A051490
Cable, RS-232, 25P, Female, Coiled, CAB-363 (Power available on pin 9 of the connector or through external power supply), 6 ft.90A051340
Cable, RS-232, 25P, Male, Coiled, CAB-364 (Power Supply available on pin 9 of the connector or through external power supply), 6.5 ft.90A051350
Cable, RS-232, 25P, Male, Straight, CAB-320 (Power available on pin 25 of the connector or through power supply), 6 ft.90G001000
Cable, RS-232, 9P, Female, Coiled, CAB-362, External Power, 6 ft.90A051330
Cable, RS-232, 9P, Female, Coiled, CAB-408 (Power available on pin 9 of the connector or through external power supply), 6 ft.90A051891
Cable, RS-232, 9P, Female, Straight, CAB-327, Requires External Power, 6 ft.90G000008
Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.90A051230
Cable, RS-232, 9P, Male, Beetle POS, Straight, CAB-389, Power Off Terminal, 6.5 ft.90A051710
Cable, RS-232,6' (For Magellan)90G001092
Cable, USB, PowerPlus, Straight, 6', CAB-413E90A052045
Cable, USB, Type A, Coiled, 9', CAB-424E90A052043
Cable, USB, Type A, Enhanced, Coiled, Power Off Terminal, 5 Meters90A052066
Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified)90A052065
Cable, USB, Type A, Straight, 6', CAB-426E (USB Certified)90A052044
Cable, Wand Emulation, 9P, Male, Coiled, CAB-348, 3.2 ft.90A051210
Cable, Wand Emulation, 9P, Male, Straight, CAB-323, 6 ft.90G001030
Cable, WYSE VDT 60/120/160/185/370, KBW, 4P, Telephone Connector, Straight, CAB-373, 6 ft.90A051470
Cases/Holsters
Protective Case/Belt Holster, GryphonPC-G040
Mounts/Stands
Cart Clip (For use with Gryphon Cordless Health Care Units. Already Included with Each Base Station.)CC-G040-HC
Mount Kit, Vertical, BC40X0-BK891000187
Power Supplies/Cords
Power Adapter, 12V DC, AC/DC Regulated, RoHS (For Use with 6003-XXXX Power Cords)8-0935
Power Cord, 100V, Japan6003-0927
Power Cord, 110V, US, Standard6003-0941
Power Cord, 220V, Australia6003-0925
Power Cord, 220V, Italy/Chile6003-0924
Power Cord, 240V, UK6003-0923
Power Cord, AC, IEC/EU6003-0940
Power Cord, IEC C13, Brazil (For use with 8-0935)6003-0942
Manuals
• 18/04/2016Quick Reference Guide (QRG), Gryphon CHR-GM40 (English)
• 18/04/2016Regulatory & Safety Addendum, Gryphon I CHR-GM40
• 17/02/2016Product Reference Guide (PRG), Gryphon I GD4100/GBT4100/GM4100 and Gryphon L GD4300 (English)
• 04/03/2014Quick Reference Guide (QRG), Gryphon I GM4100 (English)
• 04/03/2014Quick Reference Guide (QRG), Gryphon I GM4100 (Spanish)
• 07/02/2013Instruction Sheet, BC40XX UV Counterfeit Detection (English)
• 07/02/2013Instruction Sheet, CFS4000 Gryphon Stand with UV Counterfeit Detection (English)
• 06/08/2009Instruction Sheet, Set Up Instructions, Gryphon I GM4100 (English)
• 25/02/2009Instruction Sheet, Configuring the Base Station, Gryphon I GM4100 (English)
Data Sheets
Product Brochures
Solution Brochures
White Papers
• 02/11/2016The Art of the Code eBook
The Art of the Code eBook
Softwares & Utilities - Utilities
• 01/12/2016USB-COM Driver v6.3.0
- For use on all Windows 32- and 64-bit systems. Certified for Windows including XP, Win7, Win8, and Win10; auto detects OS version and installs the appropriate driver. Automatically recognizes and associates with Datalogic Scanning USB-COM equipped products. Enables data coming from the USB port to be seen by the host as if it is coming from a standard COM port (using a host defined virtual COM port). Any existing software application supporting serial communications can utilize USB scanner connectivity simply by redirecting the data input to the defined virtual COM port. Improved installation with no need for Admin privileges. "USB composite" scanner interface is not supported on Windows XP Operating system.
• 03/05/2016OPOS MR2 1.14.115
OPOS drivers for Datalogic scanner/scales for all supported interfaces. Includes 1.14 CCOs with new bar code symbology types from the UPOS specification, including OCR-A and OCR-B., and fix for Asynch wt req.
• 18/01/2016JavaPOS Drivers v1.13
- The JavaPOS Device Services are for JavaPOS-based POS Systems (Linux or Windows). Interface support includes Serial, USB-COM and OEM USB
• 10/11/2015Datalogic Aladdin v1.12.0.0.0 Build Number 151030 351
The powerful and versatile all in one software tool that offers easy and fast reader set-up. Datalogic Aladdin provides customers the opportunity to manage the configuration of handheld products, and allows flexible advanced formatting through an intuitive graphical user interface. The software tool also makes it easy for customers to upgrade the handhelds firmware, to attain the benefits of new reader features. Datalogic Aladdin, used in combination with the Datalogic USB-COM drivers, supports the following Microsoft® operating systems: Windows® XP, Windows Vista®, and Windows® 7, both 32 and 64-bit versions.
News
11/30/2009
Datalogic Scanning continues to be recognized as a leader in the global automatic data capture (ADC) market. Datalogic Scanning is mindful that the current economic climate heightens the need for intelligent and cost effective ADC solutions. Flexibility, freedom of movement, and increased productivity have become essential requirements. And, there is a clear shift towards greater mobility in today’s workplace. It is against that backdrop that we are please to announce Datalogic Scanning’s new Gryphon™ I GM4100 linear imager, a feature rich handheld mobile scanning solution.
Success Stories
07/13/2011
HUGO BOSS Extends its High Fashion Line with High Performance Gryphon Readers
HUGO BOSS is a global leader in the high fashion market. To maintain a smooth supply chain, they implemented a bar coding system at its headquarters. Experiencing huge success, HUGO BOSS extended the system using Datalogic’s Gryphon readers into its warehouse for verification and inventory activities. It has tremendously improved the automation process.
06/18/2011
Retailers in France Select Datalogic to Comply with New POS Laws
When France adopted a new law affecting the existing point-of-sale hardware for French Retailers, Datalogic stepped in. The law was aimed to ‘reduce the risks’ linked with manual handling of heavy items at the POS stations’ in hypermarkets and supermarkets. With Datalogic’s handheld readers, cashiers can safely scan items with fewer injuries.
02/02/2011
Attendee Management System Using Bar Codes Improves Lead Generation
The Atea Group is the largest IT infrastructure in Scandinavia and the Baltics. Each year they manage a series of events to educate over 2,500 customers. The challenge was to find an easy and affordable data capture solution to track attendance, interests and data of the attendees. The Atea Group found their solution with the Datalogic Gryphon GM4100 readers.
Image Gallery

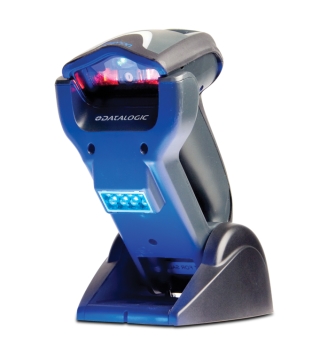

Gryphon I GM4100 Base Station with Counterfeit Detection

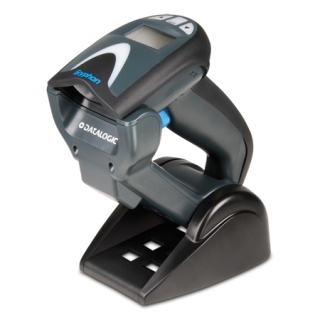

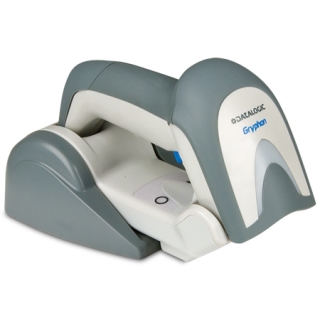

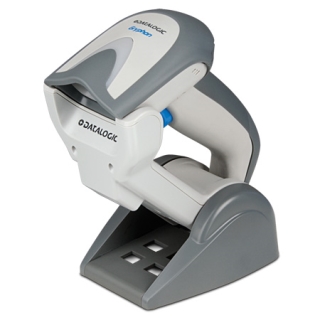

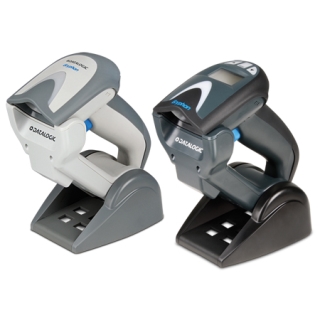

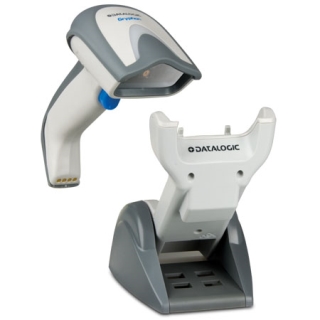

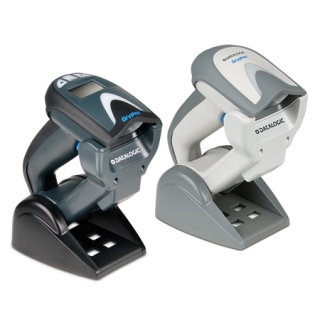

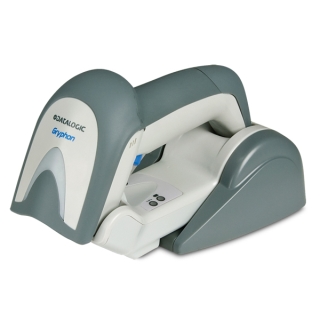

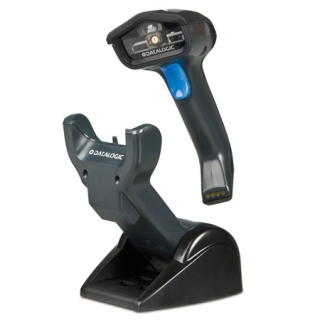

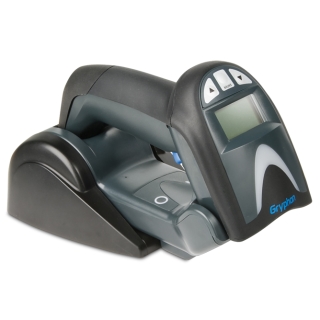

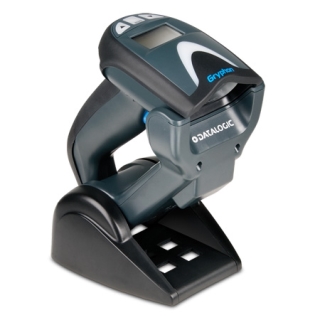

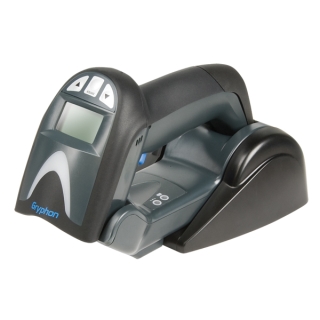

Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100
Gryphon I GM4100

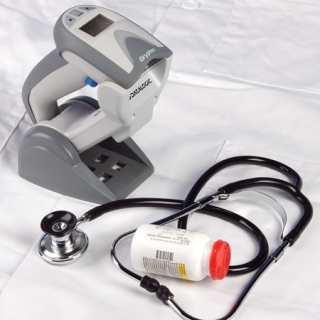

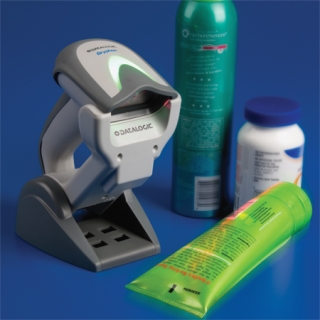

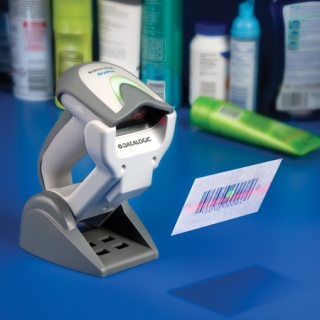

Gryphon GM4100
Gryphon GM4100
Gryphon GM4100
Gryphon GM4100
Video Gallery
Correctly Set Handheld Reader Interfaces to Correct No Beam State
Correctly Set Handheld Reader Interfaces to Correct No Beam State

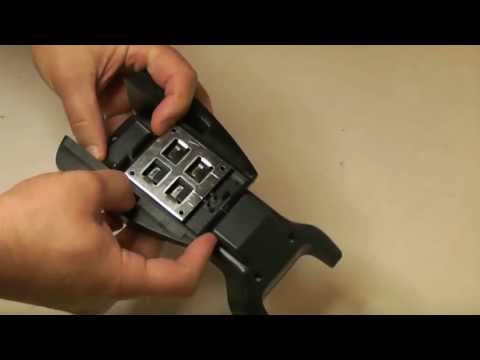

Converting the  Datalogic  Gryphon™ Reader Stand
Converting the Datalogic Gryphon™ Reader Stand
Datalogic's Perfect Match Data Verification
Datalogic's Perfect Match Data Verification
Datalogic - Imaging Innovators
Datalogic - Imaging Innovators

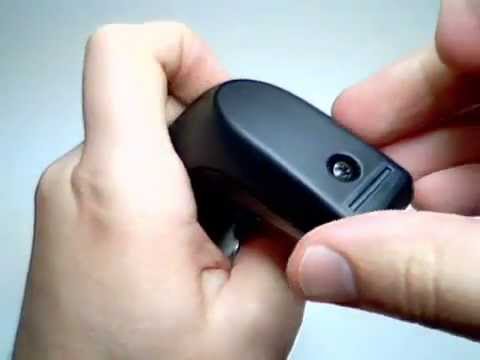

Gryphon I GM4100/GBT4100 - Replacing the Battery
