79

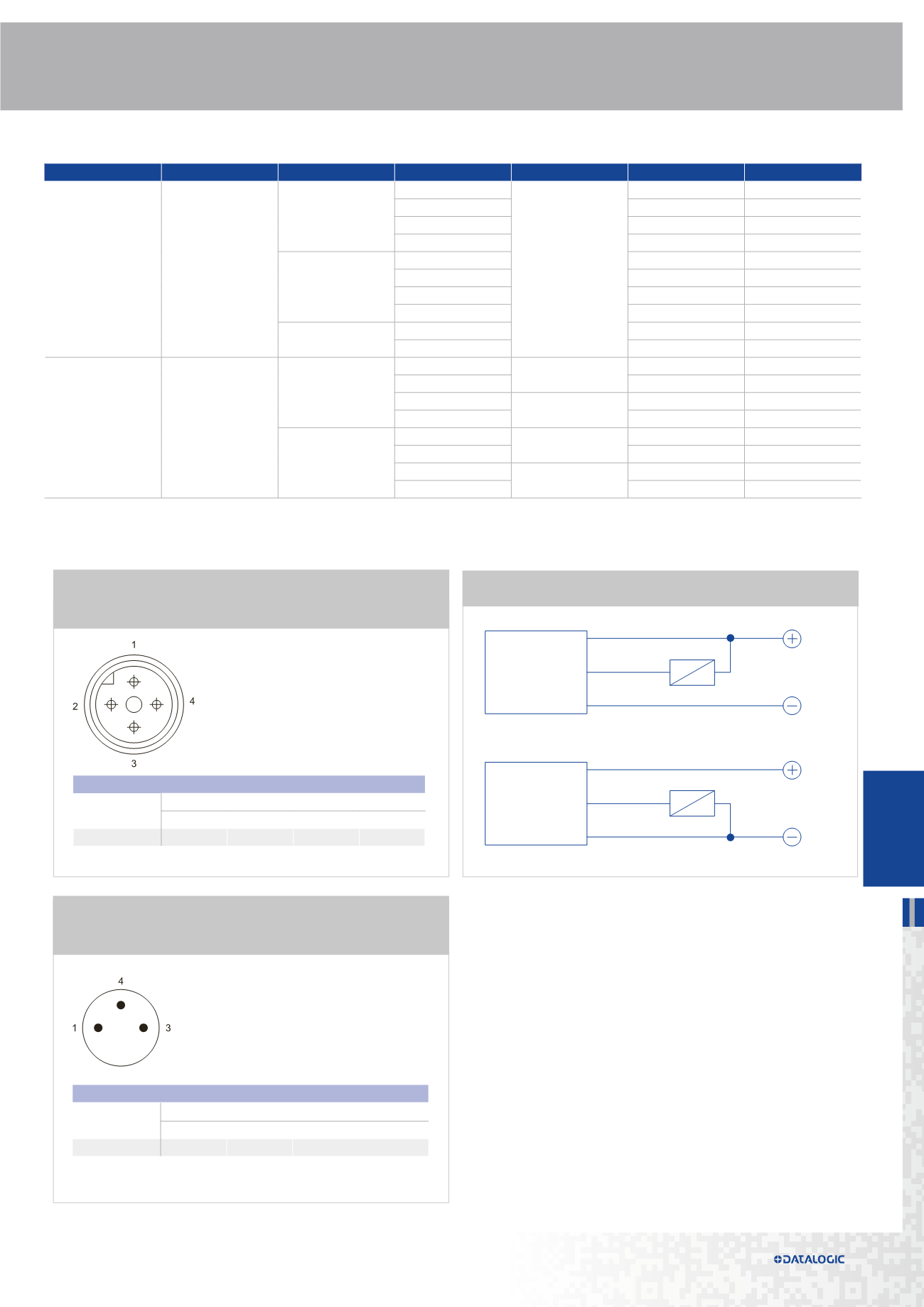

CONNECTOR TYPE ORIENTATION LENGTH MATERIAL CODING ORDER No.
M12 shielded
axial
3m
PVC
CS-A1-01-G-03 95A251290
5m CS-A1-01-G-05 95A251300
7m CS-A1-01-G-07 95A251320
10m CS-A1-01-G-10 95A251340
radial 90°
3m CS-A2-01-G-03 95A251200
5m CS-A2-01-G-05 95A251210
7m CS-A2-01-G-07 95A251220
10m CS-A2-01-G-10 95A251230
radial 90° + LED 5m CS-A2-11-G-05 95A251310
10m CS-A2-11-G-10 95A251330
M8 shielded
axial
3m PVC CS-B1-01-G-03 95A251490
5m CS-B1-01-G-05 95A251510
2m PUR CS-B1-01-R-02 95A251580
5m CS-B1-01-R-05 95A251600
radial 90°
3m PVC CS-B2-01-G-03 95A251500
5m CS-B2-01-G-05 95A251520
2m PUR CS-B2-01-R-02 95A251590
5m CS-B2-01-R-05 95A251610
3 POLES
CONNECTION
WITH CONNECTOR M12
CONTACTS CONFIGURATION
Available Contacts numbers
1 2 3 4
(NO or NC) + – NO/NC
View of
quadripole
male connector
CONTACTS CONFIGURATION
Available Contacts numbers
1 3 4
(NO or NC) + – NO/NC
View of
triple male
connector
NPN
BROWN
BLACK
BLUE
BROWN
BLACK
BLUE
PNP
WIRING DIAGRAms
CONNECTION
WITH CONNECTOR M8
CABLES,CONNECTORS& ACCESSORIES
