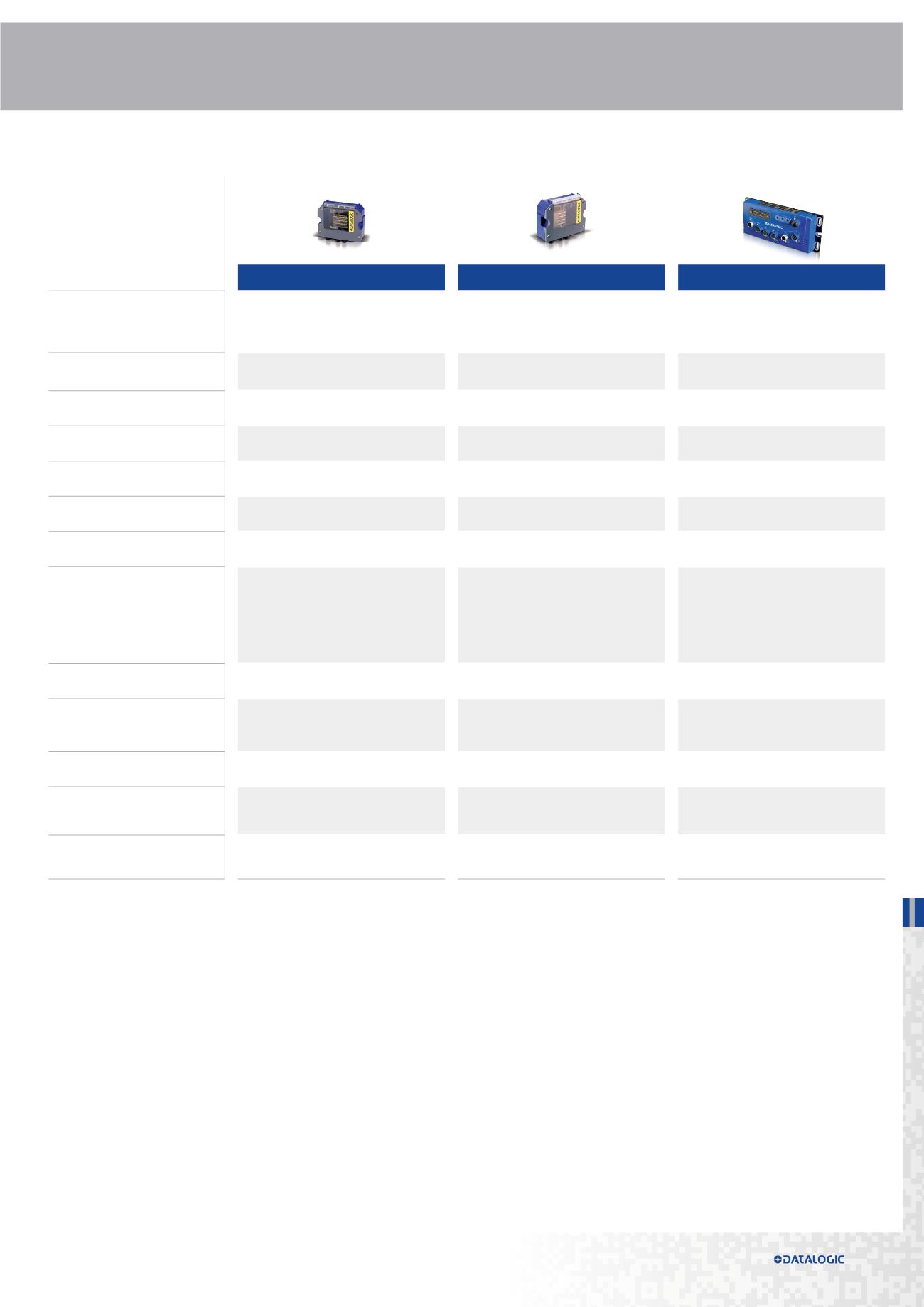

CONNECTIVITY
CBX500
CBX800
QL-QLM
DIMENSIONS (TYPICAL VALUE)
193 x 180 x 71 mm (7.6 x 7.09 x 2.8 in)
193 x 180 x 71 mm (7.6 x 7.09 x 2.8 in)
QL300: 129x76x27 mm
(5.08 x 2.99 x 1.06 in)
QLM500/600/700: 200x81x40 mm
(7.87x3.19x1.57 in)
WEIGHT
780g (27.51 oz)
830g (29.28 oz)
QL300: 312g (11 oz)
QLM: 500g (17.64 oz)
VOLTAGE SUPPLY
10 to 30 VDC
10 to 30 VDC
10 to 30 VDC
POWER CONSUMPTION OR CURRENT
ABSORPTION
2.5 W max
2.5 W max
4 A max
OPERATING TEMPERATURE
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
PROTECTION CLASS
IP65
IP65
IP65
DISPLAY & KEYPAD
20 x 4 characters & 3 keys
•
•
EMBEDDED
COMMUNICATION INTERFACES
•
Auxiliary: RS232 up to 115.2 Kbit/s
Data Source: RS232 up to 115.2 Kbit/s
Host Interface: RS232/RS485 up to 115.2
Kbit/s
ID-NET™ port up to 1 Mbps
Optional Host Interface modules
Ethernet, EtherNet/IP, Profibus, PROFINET
(depending on model)
COMMUNICATION PROTOCOL
Datalogic Application Driver (DAD Driver)
Datalogic Application Driver (DAD Driver)
•
DIGITAL INPUTS
Input 1(External Trigger)
Input 2 Opto-coupled and polarity insensitive
Input 1(External Trigger)
Input 2 Opto-coupled and polarity insensitive
Input 1(External Trigger)
DIGITAL OUTPUTS
Output 1 and Output 2 Opto-coupled
Output 1, Output 2 and Output 3 Opto-coupled
N° 1 I/O
DEVICE PROGRAMMING
HW Switches, Genius™, VisiSet™
Genius™ (Windows™ based) SW
Serial Host Mode Programming sequences
•
COMPATIBLE DEVICES
DS2100N, DS2400N, DS4800, MATRIX 200™,
MATRIX 400™
(including 3rd Party)
DS2100, DS2400, DS4800, Matrix 210™,
Matrix 300™, Matrix 410™, Matrix 450™
