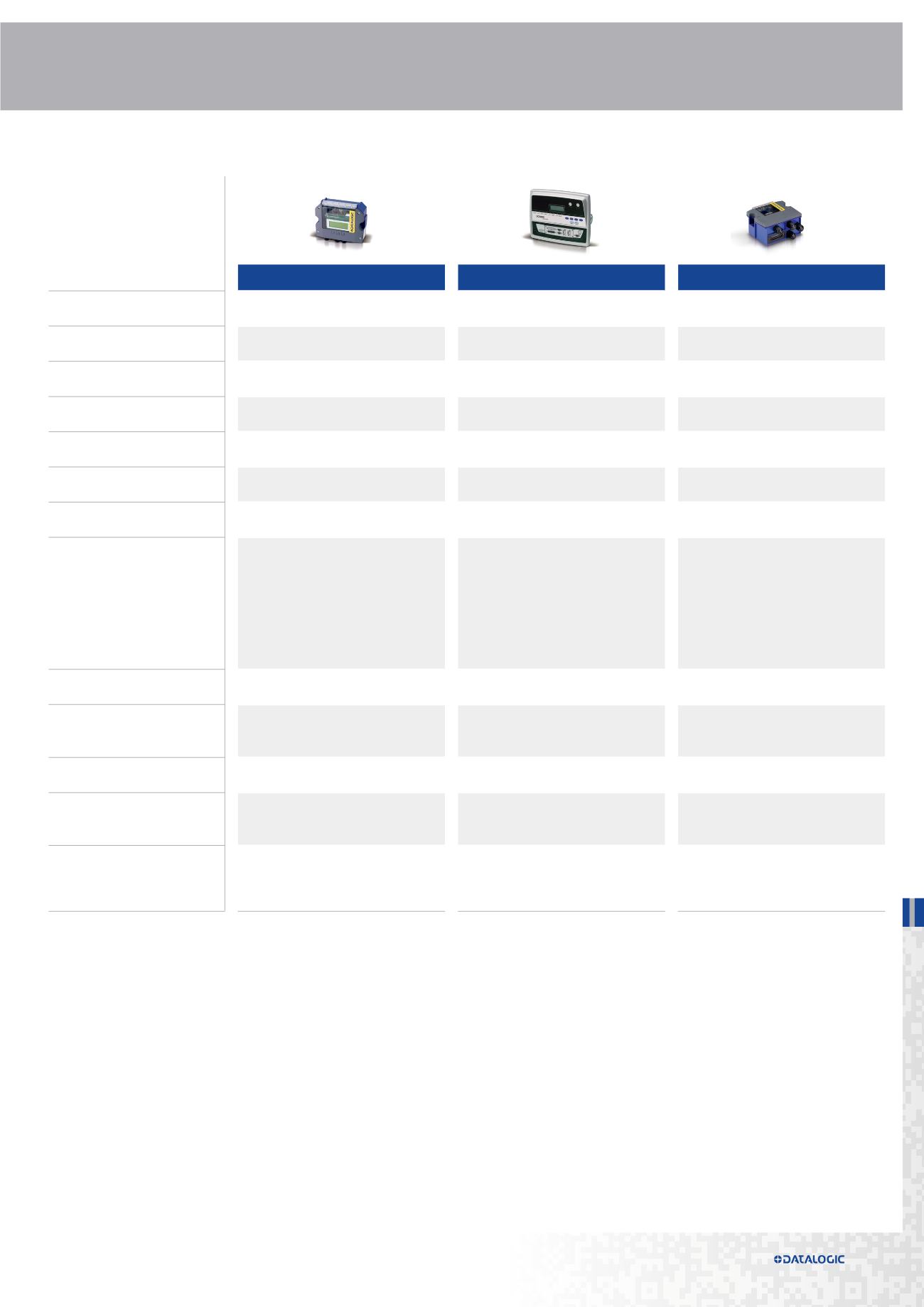

CONNECTIVITY
SC4000
SC6000
CBX100
DIMENSIONS (TYPICAL VALUE)
193 x 180 x 71 mm (7.6 x 7.09 x 2.8 in)
193 x 180 x 71 mm (7.6 x 7.09 x 2.8 in)
128 x 138 x 62 mm (5.04 x 5.43 x 2.44 in)
WEIGHT
960 g (33.86 oz)
960 g (33.86 oz)
380g (13.40 oz)
VOLTAGE SUPPLY
10 to 30 VDC
10 to 30 VDC
10 to 30 VDC
POWER CONSUMPTION OR CURRENT
ABSORPTION
5 W max
9 W max
2.5 W max
OPERATING TEMPERATURE
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
PROTECTION CLASS
IP65
IP64
IP65
DISPLAY & KEYPAD
20 x 4 characters & 3 keys
20 x 4 characters & 6 keys
20 x 4 characters & 3 keys
EMBEDDED
COMMUNICATION INTERFACES
Auxiliary: RS232 up to 115.2 Kbit/s
Host Interface 1: RS232/RS485 up to 115.2
Host Interface 2: RS232/RS485 up to 115.2
Kbit/s Kbit/s
ID-NET™ port up to 1 Mbps
Optional Host Interface modules
Auxiliary: RS232 up to 115.2 Kbit/s
Main: RS232/RS485 up to 115.2 Kbit/s,
optocoupled
Modem: RS232
Ethernet
Ethernet and Profibus
Ethernet and DeviceNet
Ethernet and Ethernet
•
COMMUNICATION PROTOCOL
Datalogic Application Driver (DAD Driver)
Datalogic Application Driver (DAD Driver)
Datalogic Application Driver (DAD Driver)
DIGITAL INPUTS
Two SW programmable, optocoupled and
polarity insensitive
3 inputs/6 outputs, optocoupled
3 inputs (TACH, PS, PS AUX), optocoupled
Input 1(External Trigger)
Input 2 Opto-coupled and polarity insensitive
DIGITAL OUTPUTS
Three SW programmable optocoupled
3 outputs
Output 1 and Output 2 Opto-coupled
DEVICE PROGRAMMING
Genius™ (Windows™ based) SW
Serial Host Mode Programming sequences
Genius™ (Windows™ based) SW
Serial Host Mode Programming sequences
HW Switches, Genius™, VisiSet™
COMPATIBLE DEVICES
DS2100N, DS2400N, DS4800, Matrix 210,
Matrix 300™, Matrix 410™, Matrix 450™
DS6300, DS6400, DX6400, DS8100A,
DX8200A
DS2100N, DS2400N, DS4800, DS6300,
DS6400, DX6400, DS8100A, DX8200A,
DM3610, MATRIX 210™, MATRIX 300™,
MATRIX 410™, MATRIX 450™
