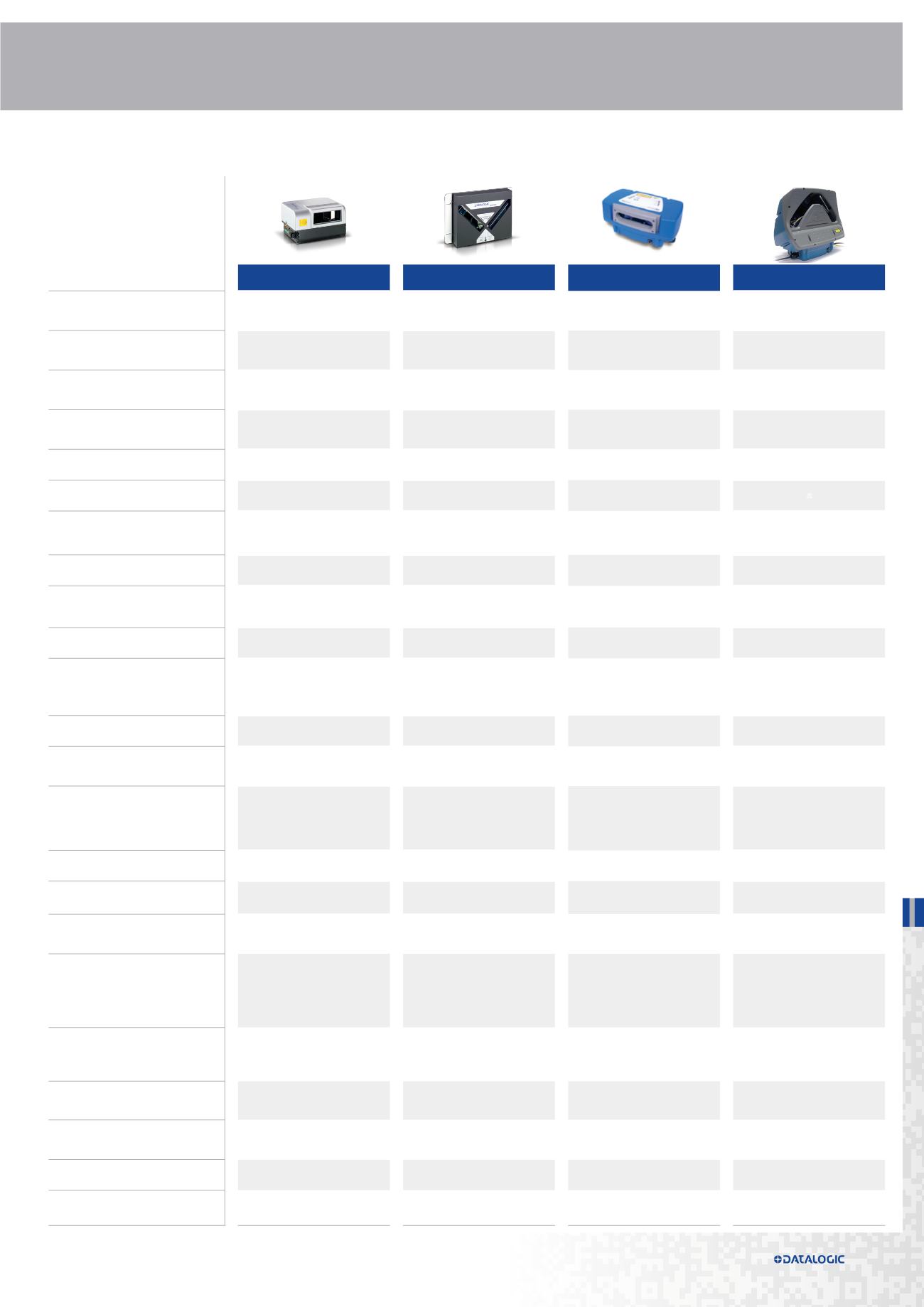

43
LASER
SCANNERS
DS8100A
DX8200A
AXIOM
AXIOM-X
READING DISTANCE (MIN / MAX)
500-1900 mm
(19.69 - 74.8 in)
500-1700 mm
(19.69 x 66.93 in)
584-1727 mm
( 22.99 x 67.99 in)
584-1727 mm
( 22.99 x 67.99 in)
BAR CODE RESOLUTION RANGE
Min: 0.25mm (10mils)
Max: 0.50mm(20mils)
Min: 0.25mm (10mils)
Max: 0.50mm(20mils)
Min: 0.25mm (10mils)
Max: 0.50mm(20mils)
Min: 0.25mm (10mils)
Max: 0.50mm(20mils)
SCAN RATE
1000 scans/s
1000 scans/s
(500 scans for each line)
700-1400 scans/s
620-1120 scans/s (each line)
SCAN PATTERN TYPE
Linear / Oscillating Mirror
Single-Cross
(Omnidirectional reading)
Linear
Single-Cross
(Omnidirectional reading)
FOCUSING SYSTEM
Fixed focus position
Fixed focus position
Fixed focus position
Fixed focus position
APERTURE ANGLE
50 degrees
û
45 degrees
û
MULTILABEL READING
Up to 10 different symbologies
during the same reading phase
Up to 10 different symbologies
during the same reading phase
Up to 10 different symbologies
during the same reading phase
Up to 10 different symbologies
during the same reading phase
OPTICAL ARCHITECTURE / TECHNOLOGY
ASTRA™
ASTRA™
Multi-laser Architecture
Multi-laser Architecture
BAR CODE ASSIGNMENT TECHNOLOGY
PACKTRACK™
PACKTRACK™
Advanced Tracking Procedure
( Photoeye accessory )
Advanced Tracking Procedure
( Photoeye accessory )
RECONSTRUCTION CODE TECHNOLOGY
ACR4™
ACR4™
DRX
DRX
READABLE CODES
22 symbologies including 2/5
family, Code39, Code93, Code128,
EAN/UPC, EAN128, ISBN128
22 symbologies including 2/5
family, Code39, Code93, Code128,
EAN/UPC, EAN128, ISBN128
All standard 1D symbologies
including: I 2 of 5, Code 128, Code
39, Code 93, Codabar, Codabar NSS,
UPC/EAN
All standard 1D symbologies
including: I 2 of 5, Code 128, Code
39, Code 93,Codabar, Codabar NSS,
UPC/EAN
CASE MATERIAL
Aluminum
Steel
Aluminum
Aluminum
DIMENSIONS (TYPICAL VALUE)
215.5 x 170.5 x 126.5 mm
( 8.48 x 6.71 x 4.98 in)
319.5 x 248.7 x 99.7 mm
(12.58 x 9.79 x 3.93 in)
158.2 x 276.1 x 131.8 mm
(6.23 x 10.87 x 5.19 in)
311 x 354 x 176 mm
(12.24 x 13.94 x 6.93 in)
WEIGHT
5.0 kg (176.37 oz )
3.3 kg (116.4 oz)
Total Weight
7.4 kg (16.31 lb)
Total Weight
7.4 kg (16.31 lb)
TEMPERATURE RANGE
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
VOLTAGE SUPPLY / POWER
CONSUMPTION
20 to 30 VDC; 20 - 30 W
110 to 240 VAC; 30VA
20 to 30 VDC; 24 W
Voltage Range < 40 W
Voltage Range < 40 W
IP RATING
IP64 (IP65 on request)
VAC version:IP40
VDC version:IP64 (IP65 on request)
IP65
IP65
EMBEDDED
COMMUNICATION INTERFACES
Main Port: RS232/RS485 up to
115.2 Kbit/s Auxiliary Port: RS232
up to 115.2 Kbit/s Lonworks
(Master/Slave),
Main Port: RS232/RS485 up to
115.2 Kbit/s Auxiliary Port: RS232
up to 115.2 Kbit/s Lonworks
(Master/Slave), Ethernet,
Profibus
Standard: On-board EtherNet/IP,
Ethernet TCP/IP,
Serial RS-232, RS-422
Standard: On-board EtherNet/IP,
Ethernet TCP/IP,
Serial RS-232, RS-422
DIGITAL INPUTS
Three SW programmable and
One “Encoder”, optocoupled,
NPN/PNP
Three programmable and
One "Encoder" (optocoupled)
Auxiliary Input, NPN/PNP
transistor (optocoupled)
Two I/O relays
Two I/O relays
DIGITAL OUTPUTS
Three SW programmable,
optocoupled, event driven
Three SW programmable,
optocoupled, event driven
Two I/O relays
Two I/O relays
FIELDBUS
ü
Available with SC6000
controller
ü
Profibus Embedded
û
û
ETHERNET
ü
Embedded
ü
Embedded
ü
Embedded
ü
Embedded
DEVICE PROGRAMMING
Genius™ (Windows™ based) SW
Serial Host Mode Programming
sequences
Genius™ (Windows™ based) SW
Serial Host Mode Programming
sequences
AXCESS Setup SW
AXCESS Setup SW
