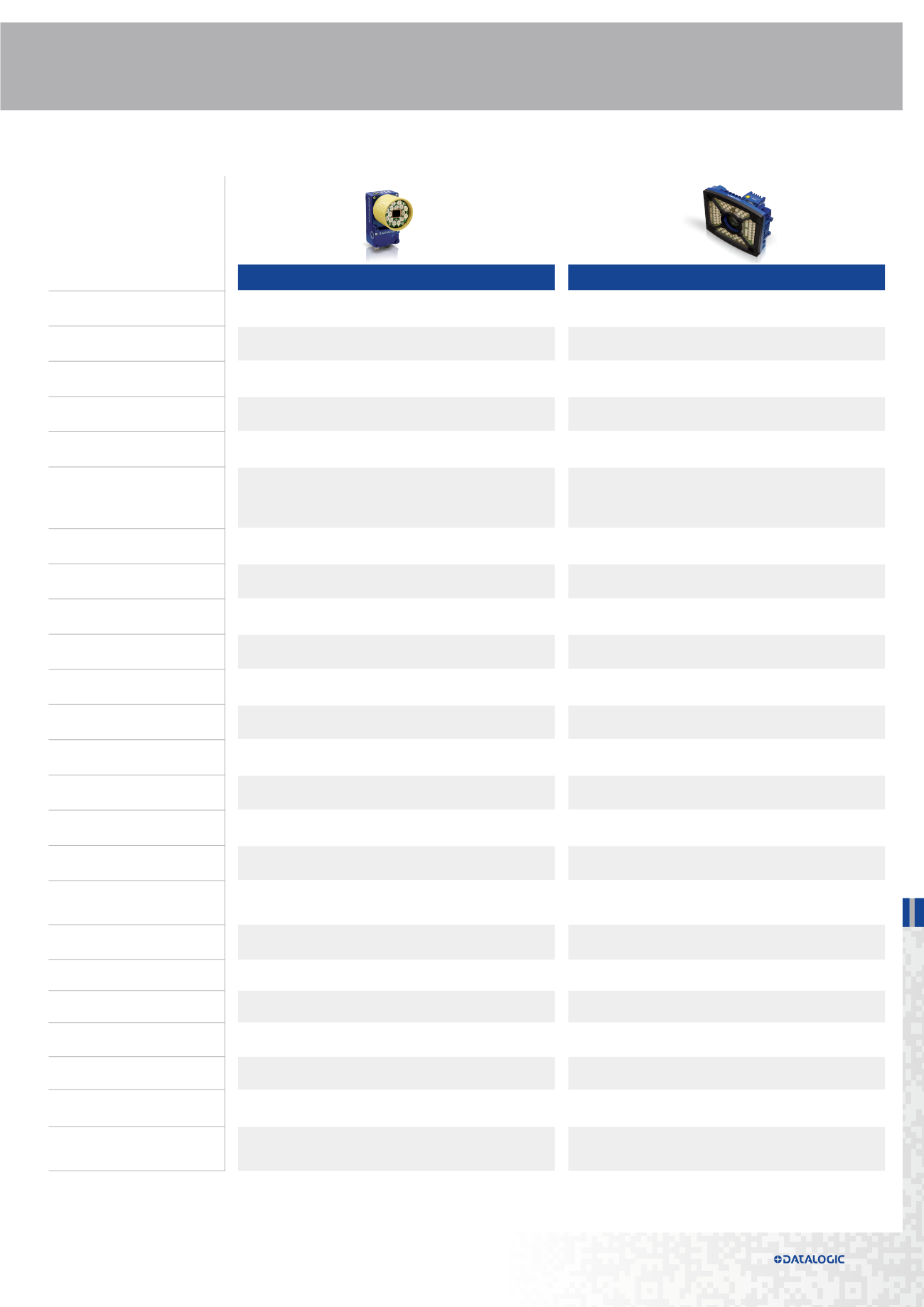

35
2D IMAGERS
MATRIX 410™
MATRIX 450™
READING DISTANCE (MIN / MAX)
50-2000 mm (1.97 - 78.74 in)
300-3000 mm (11.81 - 118.11 in)
FOCUSING SYSTEM
Variable Focus
Variable Focus
SENSOR
CMOS sensor SXGA (1280 x 1024) 1.3 MP CCD sensor UXGA (1600x1200) 2 MP
CCD sensor 5 MP (2448 x 2050)
FRAME RATE
CMOS: 27 frames/s CCD: 15 frames/s
15 frames/s
ON BOARD MEMORY
256 MB
512 MB
READABLE CODES
1D and Stacked: IL 2/5, Code 128, Code 39, EAN/UPC, PDF417,Micro
PDF417, Pharmacode, GS1 DataBar (RSS) family, and many more.
2D: Data Matrix, QR Code, Micro QR, Maxicode, Aztec, Microglyph
Postal: Royal Mail, Japan Post, Planet, Postnet and many more
1D and Stacked: IL 2/5, Code 128, Code 39, EAN/UPC, PDF417, Micro
PDF417, Pharmacode, GS1 DataBar (RSS) family, and many more.
2D: Data Matrix, QR Code, Micro QR, Maxicode, Aztec, Microglyph
Postal: Royal Mail, Japan Post, Planet, Postnet and many more
CODE ORIENTATION
Omnidirectional on any code type
Omnidirectional on any code type
MULTILABEL/MULTICODE READING
ü
ü
VOLTAGE SUPPLY / POWER
CONSUMPTION OR CURRENT ABS.
10 to 30 VDC; 5 - 8 W
24 VDC; 2.5 A
IP RATING
IP67
IP65
TEMPERATURE RANGE
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
CASE MATERIAL
Aluminum
Aluminum
DIMENSIONS (TYPICAL VALUE)
123 x 60.5 x 87 mm (4.84 x 2.38 x 3.42 in)
170 x 200 x 150 mm (6.69x7.87x5.90 in)
WEIGHT
482g (17 oz.) with lens and internal illuminator
3 kg (105.8 oz) with lens
ESD SAFE
ü
(with accessories)
û
YAG LASER PROTECTION
ü
(with accessories)
û
EMBEDDED
COMMUNICATION INTERFACES
RS232 / RS422 / RS485 Ethernet IEEE 802.3 10 Base T and IEEE 802.3U
100 BaseTX compliant
RS232 / RS422 / RS485 Ethernet IEEE 802.3z 1000 BaseT compliant
ID-NET™ INTERFACE
ü
ü
FIELDBUS
ü
Profinet I/O Embedded
Additional fielbus available with CBX & QLM accessories
ü
CBX, QLM external devices
ETHERNET
ü
Embedded
ü
Embedded
XPRESS INTERFACE™
ü
ü
DIGITAL INPUTS
Two SW programmable, optocoupled and polarity insensitive
Two SW programmable, optocoupled and polarity insensitive
DIGITAL OUTPUTS
Two SW programmable, optocoupled
Two SW programmable, optocoupled
DEVICE PROGRAMMING
VisiSet™ setup SW (Windows™ based)
Serial Host Mode Programming sequences
VisiSet™ setup SW (Windows™ based)
String programming Interface
