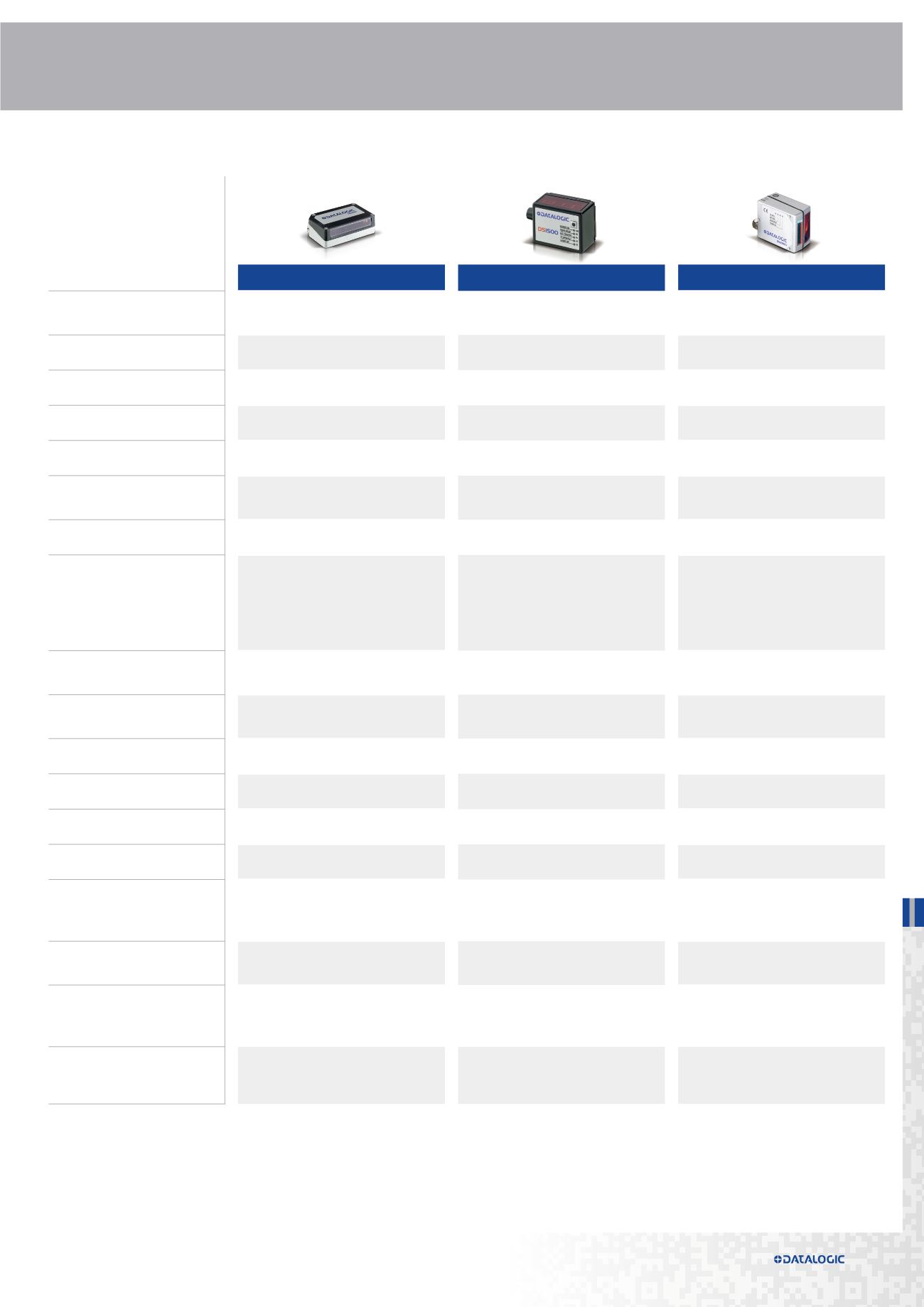

LASER
SCANNERS
DS1100
DS1500
DS2200
READING DISTANCE (MIN / MAX)
100 - 220 mm
(3.94 - 8.66 in)
100-240 mm
(3.94 - 9.45 in)
85 - 220 mm
(3.35 - 8.66 in)
MAX RESOLUTION
up to 0.12mm (5 mils)
up to 0.10mm (4mils)
up to 0.076mm (3mils)
SCAN RATE
500 scans/s
800-1200 scans/s
500 scans/s
SCAN PATTERN TYPE
Linear / Raster
Linear
Linear / Raster
APERTURE ANGLE
70 degrees
60 degrees
62 degrees
MULTILABEL READING
Up to 6 different symbologies during the same
reading phase
Up to 6 different symbologies during the same
reading phase
Up to 6 different symbologies during the same
reading phase
RECONSTRUCTION CODE TECHNOLOGY
û
ACB™ embedded
û
READABLE CODES
Code 2/5, Code39, Code93, Code128, EAN/UPC,
EAN128, Codabar, Pharmacode
Code 2/5, Code39, Code93, Code128, EAN/UPC,
EAN128, Codabar, Pharmacode
Code 2/5, Code39, Code93, Code128, EAN/UPC,
EAN128, Codabar, Pharmacode
CASE MATERIAL
Magnesium (body) + Polycarbonate (cover)
Zama
(zinc, aluminum, magnesium alloy)
Die-cast Zinc
DIMENSIONS (TYPICAL VALUE)
80 x 50 x 22 mm
(3.15 x 1.97 x 0.87 in )
40 x 30 x 22 mm
(1.57 x 1.18 x 0.87 in )
50 x 40 x 28 mm
(1.97 x 1.57 x 1.10 in )
WEIGHT (TYPICAL VALUE)
< 100g (3.53 oz) without cable
44g ( 1.55 oz ) without cable
150g ( 5.29 oz ) without cable
TEMPERATURE RANGE
0° - 45 °C (32 - 113 °F)
0° - 45 °C (32 - 113 °F)
0° - 40 °C (32 - 104 °F)
VOLTAGE SUPPLY / POWER
CONSUMPTION
5 VDC - 1.5W
5 VDC - 2W
5 VDC - 2W
IP RATING
IP65
IP65
IP65
EMBEDDED
COMMUNICATION INTERFACES
Main port RS485 Half Duplex up to 115.2 Kbit/s
Auxiliary port RS232 up to 115.2 kbps
2 x RS232 o 1 x RS485 full o half duplex
(you can select them
with SW)
Main port RS485 Half Duplex up to 115.2 Kbit/s
Auxiliary port RS232 up to 115.2 kbps
DIGITAL INPUTS
Two SW programmable (NPN only)
External Trigger (NPN only)
External Trigger (NPN only)
DIGITAL OUTPUTS
Two SW programmable, event driven
Two SW programmable, event driven
Two SW programmable, event driven
DEVICE PROGRAMMING
WinHost™ (Windows™ based) SW and Serial
Host Mode Programming sequences
WinHost™ (Windows™ based) SW
WinHost™ (Windows™ based) SW and Serial
Host Mode Programming sequences
