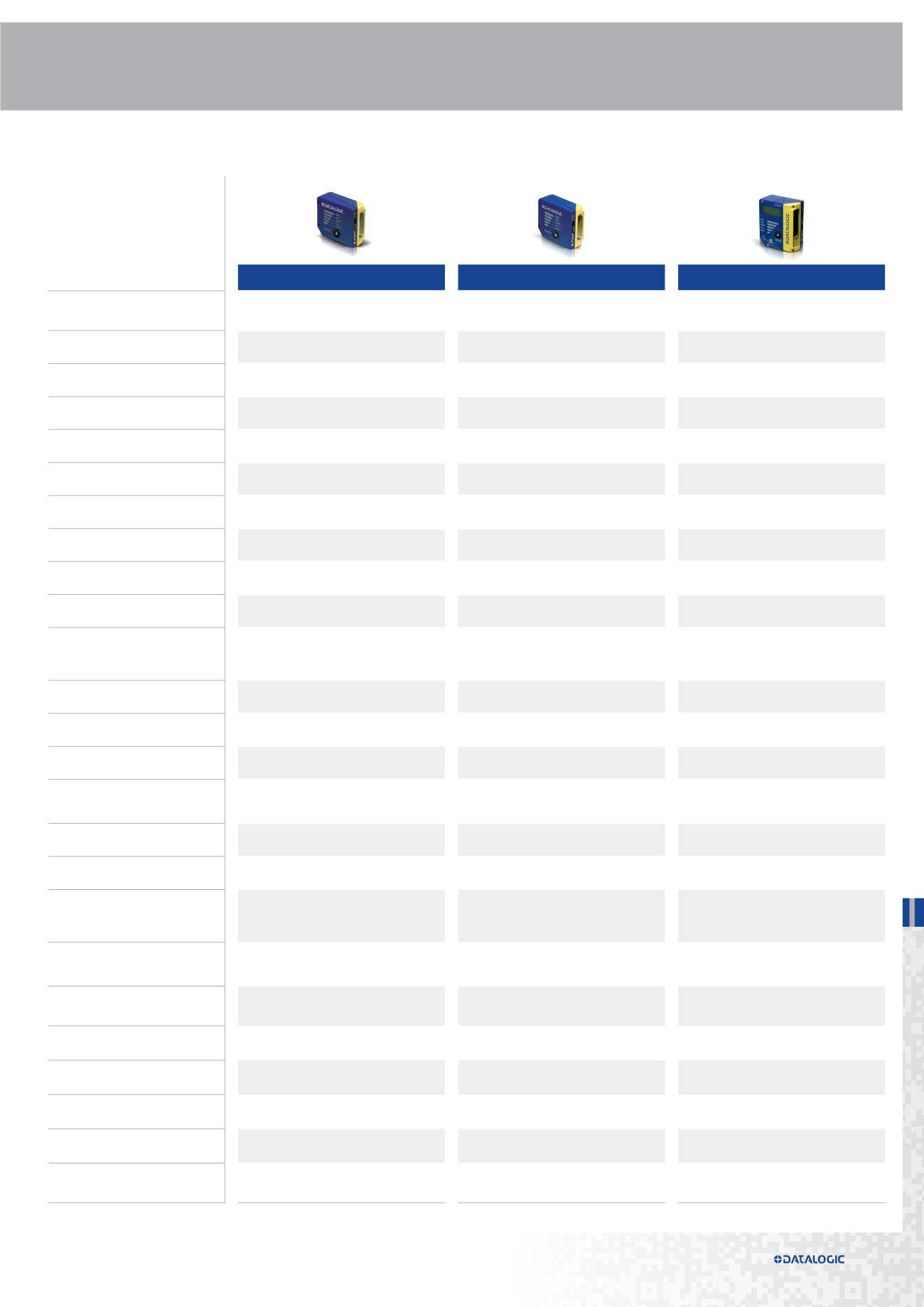

39
LASER
SCANNERS
DS2100N
DS2400N
DS4800
READING DISTANCE (MIN / MAX)
50 - 300 mm
(1.97 - 11.81 in)
70 - 600 mm
(2.76 - 23.62 in)
200 - 1000 mm
(7.87 - 39.37 in )
MAX RESOLUTION
up to 0.12mm (5 mils)
up to 0.20mm (8mils)
up to 0.20mm (8mils)
SCAN RATE
500 - 1000 scans/s
600 - 1000 scans/s
600 - 1000 scans/s
SCAN PATTERN TYPE
Linear / Raster
Linear / Raster
Linear / Oscillating Mirror
VARIABLE FOCUS
û
û
ü
APERTURE ANGLE
60 degrees
50 degrees
50 degrees
MULTILABEL READING
Up to 10 Codes in the same reading phase
Up to 10 Codes in the same reading phase
Up to 10 Codes in the same reading phase
BAR CODE ASSIGNMENT TECHNOLOGY
û
û
û
AUTOFOCUS / DYNAMIC FOCUS
û
û
û
RECONSTRUCTION CODE TECHNOLOGY
ACR-Lite™
ACR-Lite™
ACR4™
READABLE CODES
Code 2/5, Code39, Code93, Code128, EAN/
UPC, EAN128, Codabar, Pharmacode, Plessey,
ISBT128
Code 2/5, Code39, Code93, Code128, EAN/
UPC, EAN128, Codabar, Pharmacode, Plessey,
ISBT128
Code 2/5, Code39, Code93, Code128, EAN/UPC,
EAN128, Codabar, Pharmacode, Plessey, ISBT128
CASE MATERIAL
Aluminum
Aluminum
Aluminum
DIMENSIONS (TYPICAL VALUE)
84 x 68 x 34 mm (3.31 x 2.68 x 1.34 in )
84 x 68 x 34 mm (3.31 x 2.68 x 1.34 in )
101 x 85 x 42 mm (3.98 x 3.35 x 1.65 in )
WEIGHT
330g ( 11.64 oz )
330g ( 11.64 oz )
570g (20.11 oz)
TEMPERATURE RANGE
0° - 45 °C (32 - 113 °F)
0° - 45 °C (32 - 113 °F);
Subzero ver. up to -35°C (-31°F)
0° - 50 °C (32 - 122 °F);
Subzero ver. up to -35°C (-31°F)
VOLTAGE SUPPLY / POWER
CONSUMPTION
10-30 VDC; 4 W (average)
10-30 VDC; 5 W (average)
10-30 VDC; 6-32 W
IP RATING
IP65
IP65
IP65
EMBEDDED
COMMUNICATION INTERFACES
Main port RS232/RS422/RS485 up to 115.2
Kbit/s Auxiliary port RS232 up to 115.2 kbps
Main port RS232/RS422/
RS485 up to 115.2 Kbit/s
Auxiliary port RS232 up to 115.2 kbps
Main port RS232/RS422/
RS485 up to 115.2 Kbit/s
Auxiliary port RS232 up to 115.2 kbps
DIGITAL INPUTS
External Trigger (optocoupled, NPN/PNP),
IN2 ( not optocoupled, NPN only)
External Trigger (optocoupled, NPN/PNP),
IN2 ( not optocoupled, NPN only)
Two SW programmable, optocoupled, NPN/PNP
DIGITAL OUTPUTS
Two SW programmable, event driven,
optocoupled
Two SW programmable, event driven,
optocoupled
Two SW programmable, event driven,
optocoupled
ID-NET™ INTERFACE
ü
ü
ü
FIELDBUS
ü
with CBX , QLM external devices
ü
with CBX , QLM external devices
ü
with CBX , QLM external devices
ETHERNET
ü
with CBX , QLM external devices
ü
with CBX , QLM external devices
ü
with CBX , QLM external devices
XPRESS INTERFACE™
ü
ü
ü
DEVICE PROGRAMMING
Genius™ (Windows™ based) SW
Serial Host Mode Programming sequences
Genius™ (Windows™ based) SW
Serial Host Mode Programming sequences
Genius™ (Windows™ based) SW
Serial Host Mode Programming sequences
