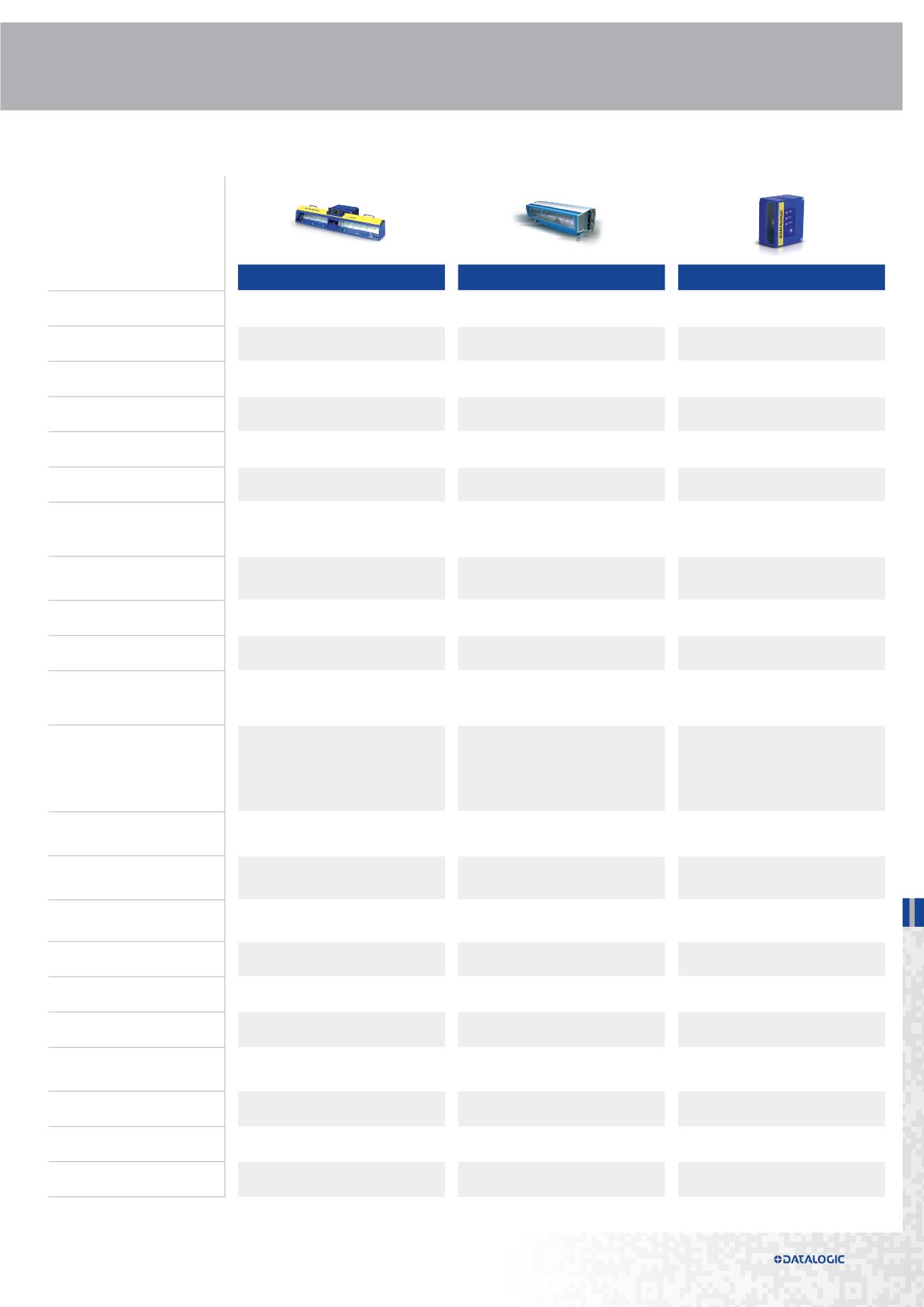

LINEAR IMAGERS
NVS9000™
AV6010
TC1200
READING DISTANCE (MIN / MAX)
up to 1400 mm (55.12 in)
1120 - 3050 mm (44.09 - 120.08 in) with
110mm lens
50 - 450 mm (1.97 -17.72 in)
MAX RESOLUTION
110 - 260 DPI (application dependant)
250 DPI
up to 0.10mm (4 mils)
SCAN RATE
33000 scans/s (33 kHz)
19000 scans/s (19 kHz)
320 scans/s
OCR & VIDEO-CODING FUNCTIONS
ü
ü
û
IMAGER SENSOR FEATURES
Linear CCD 8K sensor (8192 pixels)
Linear CCD 8K sensor (8192 pixels)
Linear CCD Technology
MULTILABEL READING
ü
ü
Up to 10 different symbologies during the
same reading phase
READABLE CODES
All Standard 1D & 2D symbologies
All Standard 1D & 2D symbologies
EAN/UPC, Code 39, Code 32, Code 128,GS1-128,
ISBT 128, Interleaved and Standard 2 von 5,
Codabar, ABC Codabar, GS1 Databar (Omnidir.,
Limited, Expanded), Code 93, Code 11, MSI
VOLTAGE SUPPLY /
POWER CONSUMPTION
24 VDC; 360 - 450 W
115/230 VAC, 50/60 Hz; 450 - 800 VA
5 VDC - 1.75 W
IP RATING
IP65
IP65
IP 64
TEMPERATURE RANGE
0 to 50 °C (32 to 122 °F)
0 to 50 °C (32 to 122 °F)
0° - 50 °C (32 - 122 °F)
CASE MATERIAL
Aluminum die-casting
CAMERA: Rigid cast aluminum chassis with
powder-coated aluminum access covers
RANGEFINDER: Powder-coated extruded
aluminum
ABS Industrial Enclosure
DIMENSIONS
SHORT: 845 x 400 x 237 mm
(33.27 x 15.75 x 9.33 in)
MED: 1150 x 400 x 237 mm
(45.28 x 15.75 x 9.33 in)
LONG: 1480 x 400 x 237 mm
(58.27 x 15.75 x 9.33 in)
SHORT: 283 x 832 x 389 mm
(11.14 x 32.76 x 15.31 in)
LONG: 283 x 1137 x 389 mm
(11.14 x 44.76 x 15.31 in)
RANGEFINDER: 138 x 83 x 915 mm
(5.43 x 3.27 x 36.02 in)
57 x 31 x 50 mm
(2.24 x 1.22 x 1.97 in)
WEIGHT
11 kg (24.25 lb)
SHORT/LONG:
30.8 kg (67.9 lb) / 37.1 kg (81.79 lb)
RANGEFINDER: 8.2 kg (18.08 lb)
RS232:120g (4.23 oz)
EMBEDDED
COMMUNICATION INTERFACES
USB port, VGA port, Ethernet Gb,C-link,
RS232/RS485 full duplex up to 115.2
Kbit/s (optoisolated)
Gigabit Ethernet TCP/IP (RJ45), Serial
RS232/422 (9-pin ‘D’)
RS232 or USB
DIGITAL INPUTS
Presence sensor input, speed sensor input
One cable connects all components through a
dedicated network providing the tach, trigger
and sync signals
One (trigger input), optocoupled, polarity
insensitive
DIGITAL OUTPUTS
4 Input / 4 Output NPN or PNP open collector
input/output, optoisolated
1 SYNC Input; 1 SYNC Output
Two (software programmable), optocoupled,
MAX Voltage=30V, MAX Current=30mA
IMAGE SAVING FUNCTION
ü
ü
û
ETHERNET
ü
Embedded
ü
Embedded
û
DEVICE PROGRAMMING
VCS Supervisor SW provides diagnostics and
statistics with a very intuitive visual on screen
information
Setup with standard Browser
(Explorer, Chrome, Firefox) SW
Aladdin SW and Programming Bar Code Labels
TUNNEL CONFIGURATIONS
From 1-side to 6-sides configurations
From 1-side to 6-sides configurations
û
MODULATED LIGHT TECHNOLOGY
ü
ü
û
DIMENSIONING FUNCTION
ü
with external device
ü
û
