the importance of colors
lighting color
constraints

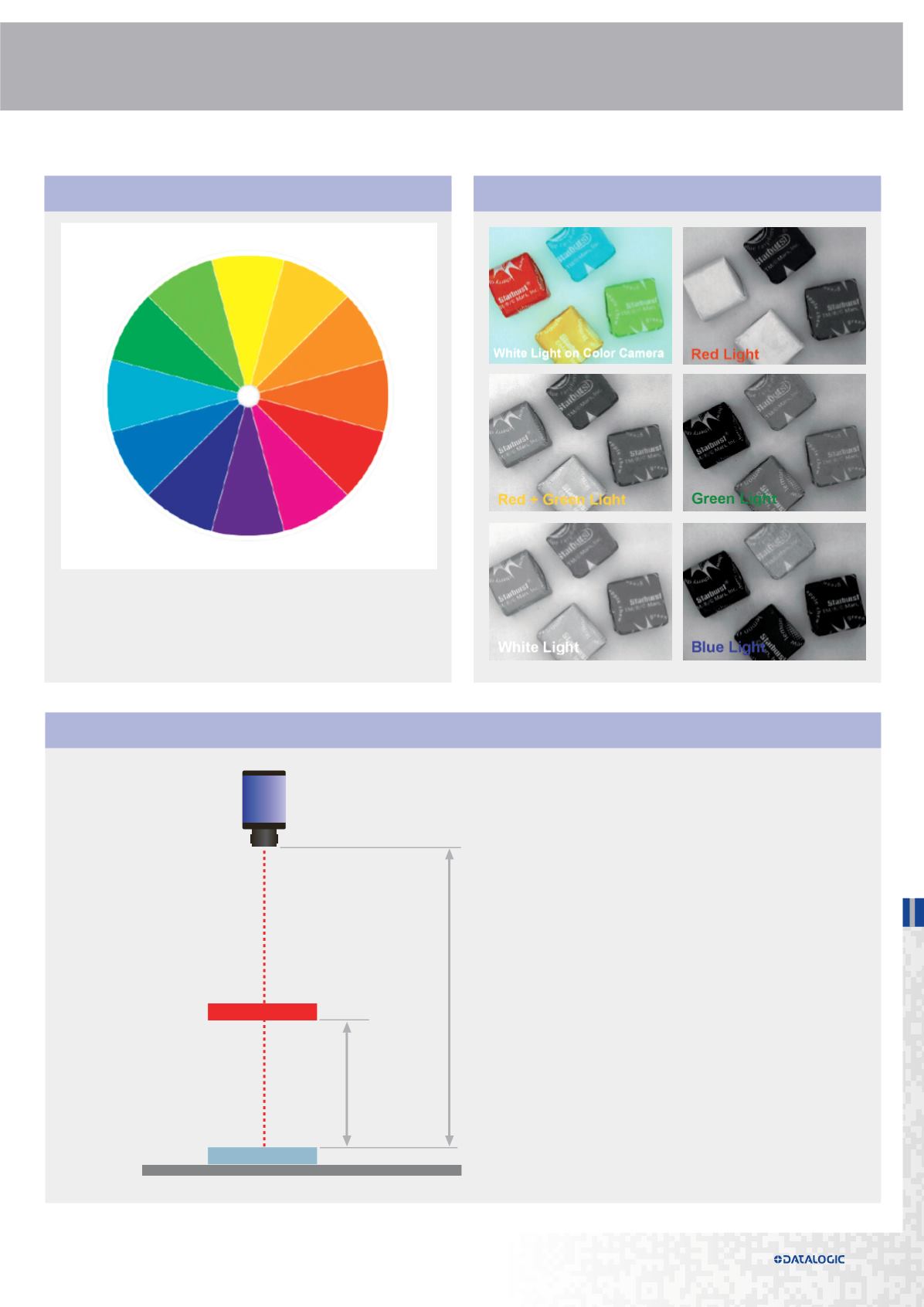

Colors affect acquired images even when monochrome cameras are
used. Rule of thumb:
• In order to brighten, use same color lighting as compared to the
object
• In order to darken, use opposite color lighting as compared to the
object
When evaluating a machine vision application,
mechanical constraints must be carefully evaluated
and considered since they may limit the lighting and
lensing solutions.
Space (volume) constraints
• What space is available for lighting?
Speed of inspection
• Limits what lighting (strobed or static) and what
inspection tools can be used
Environmental issues
• Specific IP rating requirements?
LWD
45 mm
WD
110 mm
FOV: 2.5”x2.0”
camera & lens
sharp cut filter R64
