DSM04XX

DSM04XX

Big performance in a small package

Get the greatest performance in a small enclosure

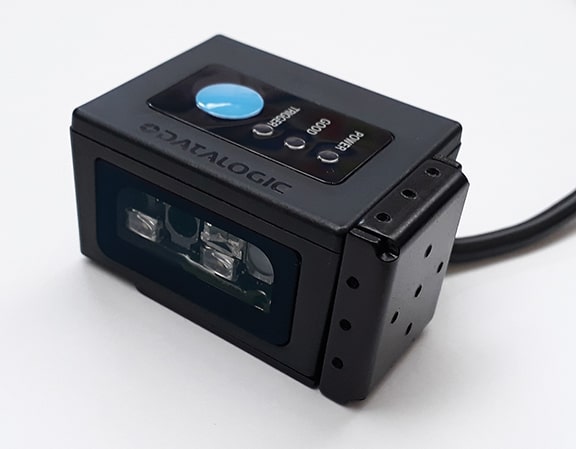

The DSM04XX from Datalogic is the latest compact fixed scan module to suit all of your needs. It has been developed to empower a variety of different systems such as kiosks, ticketing machines, access control systems, autonomous robots, and lab test equipment. The DSM04XX has a rugged construction. Its high impact resin body will withstand knocks and is resistant to virtually any cleaning solvents and disinfectants. This is the module for you when you need to scan both 1D and 2D barcodes from the tightest of spaces. The DSM04XX really does prove that size isn’t everything.


Discover the power in something so small

Discover the power in something so small

Available in several models with different resolutions and field of view, the DSM04XX will suit all of your applications. The wide-angle model is particularly useful when space is at a premium. The module itself is only 49 cm3 (3 in3). You will have to see it to believe it when it comes to the size of the DSM04XX. It can rest comfortably in the palm of your hand and is 60% smaller than the well known Datalogic GFS44XX scan modules. The DSM04XX is the product for you if you need high performance in a small package.

Fit it wherever you need to

The DSM04XX offers electrical and mechanical fittings for all possible integration options. You get all of the mounting hardware included within the box. Simply install your device from any side and at an angle of your choosing. It’s highly resistant to motion and low light conditions for the more rugged applications you may choose to use it for. The highly visible 4-dot aimer and audible feedback beep will confirm when you have a good read. As with many other Datalogic products, the DSM04XX comes with the Green Spot technology for highly visible indication of a good-read feedback directly on the code just read.


Fit it wherever you need to
It is small but tough and versatile too

It is small but tough and versatile too

Whatever enclosure you choose to embed this barcode reader in, you know it will remain in operation for years to come. With its tough IP54 casing it is fully protected from both dust and water ingress. Despite the size and rugged exterior, the DSM04XX still provides interfacing options to suit all requirements. Whether you need RS-232, USB, or multiple interfaces, the device provides plug and play installation. Scan modes are easily configured between Triggered, Autosense or Soft Trigger. The DSM40XX is the perfect choice when it comes to finding your next future-proof scan module.



Downloads for DSM04XX

Services

EASEOFCARE Service Programs

Our mission is to provide our Customers with excellent service, at every interaction, tailored to their profiles and their industry.
The central role of the customer also drove the creation of a new corporate division (the so-called “Customer Service”), which has centralised all the services provided by the Group globally, from order entry and confirmation to after-sales service and installation, by applying a performance indicator of client satisfaction such as the Net Promoter Score (NPS) used by many Fortune 500 Companies.

Customer Services will ensure a lean and consistent response path to each request. Our empowered and talented specialists will engage with the customer and commit to drive each case to complete resolution.

Datalogic’s Customer Services Organization offers a wide and complete range of post-sales services (EASEOFCARE Agreements).  It is organized in three levels of support, in order to guarantee the most appropriate professional assistance based on the specific problem.

Datalogic’s Customer Service can deploy in the territory a team of multi-lingual professionals, with a broad technical expertise across the whole product range.

Our standard service portfolio includes >>

Media

Models & Accessories

DSM0400, 2D, MP-DL, RS-232 and USB, RJ-45 Connector
DSM0492-DL
DSM0400, 2D, MP-DL, RS-232, 2 m Cable
DSM0452-DL
DSM0400, 2D, MP-DL, USB, 50 cm Cable
DSM0422-DL
DSM0400, 2D, MP-SR, USB, 50 cm Cable
DSM0422-SR
DSM0400, 2D, MP-WA, RS-232 USB, RJ-45 Connector
DSM0492-WA
DSM0400, 2D, MP-WA, RS-232, 2 m Cable
DSM0452-WA
DSM0400, 2D, MP-WA, USB, 50 cm Cable
DSM0422-WA
DSM0400, 2D, WVGA, USB, 50 cm Cable
DSM0421
Gryphon GFS4100 Fixed Scanner, 1D Imager, RS-232 (9P) - Use with Power Supply 90ACC1882
GFS4150-9
GRYPHON GFS4100 SCANNER,1D IMAGER,USB
GFS4170
GRYPHON GFS4400 FIXED SCANNER, 2D, RS232
GFS4450-9
GRYPHON GFS4400 FIXED SCANNER, 2D, USB
GFS4470
GRYPHON GFS4400 FIXED,2D,WHITE LED, USB
GFS4470-BK
GRYPHON GFS4400 FIXED,2D,WHITE LED,RS232
GFS4450-9-BK
DSM04XX EofC OVERNIGHT RPLCMT COMP 3 YRS
ZSC1DSM04XX31
DSM04XX EofC OVERNIGHT RPLCMT COMP 5 YRS
ZSC1DSM04XX51
DSM04XXi EofC 2 DAYS COMP 3 YRS
ZSC2DSM04XX31
DSM04XXi EofC 2 DAYS COMP 5 YRS
ZSC2DSM04XX51
DSM04XXi EofC 5 DAYS 3 YRS
ZSN5DSM04XX31
DSM04XXi EofC 5 DAYS COMP 3 YRS
ZSC5DSM04XX31
Gryphon GFS4400 EofC 2 Days Comprehensive, 1 Year Renewal
W-GFS44-R
Gryphon GFS4400 EofC 2 Days Comprehensive, 3 Years
W-GFS44-3
Gryphon GFS4400 EofC 2 Days Comprehensive, 5 Years
W-GFS44-5
Gryphon GFS4400 EofC 5 Days, 1 Year Renewal
E-GFS44-R
Gryphon GFS4400 EofC 5 Days, 3 Years
E-GFS44-3
Gryphon GFS4400 EofC 5 Days, 5 Years
E-GFS44-5
Gryphon GFS4400 EofC Overnight Replacement Comprehensive, 1 Year Renewal
Q-GFS44-R
Gryphon GFS4400 EofC Overnight Replacement Comprehensive, 3 Years
Q-GFS44-3
Gryphon GFS4400 EofC Overnight Replacement Comprehensive, 5 Years
Q-GFS44-5
MINIMUM REPAIR CHARGE, DSM04XX
ZR0DSM04XXMIN
MINIMUM REPAIR CHARGE, GFS4XXX
GRYFS-80
MINIMUM REPAIR CHARGE,MGL 1000i/1100i
208-80
WHOLE UNIT REPAIR,MGL 1000i/1100i
208-81
Cable, IBM 4683, POS, Port 9B, Coiled, 12 ft
8-0739-04
Cable, IBM USB, POT, 12 ft.
8-0734-12
Cable, KBW, 5DIN, P&S, POT/External Power, Coiled, 12 ft
8-0741-03
Cable, KBW, 6MDIN, P&S, POT/External Power, 12 ft
8-0741-17
Cable, RS-232, 10RJ Plug, Magellan 2200VS/2300HS AUX Port, POT, 12 ft
8-0737-10
Cable, RS-232, 9P, Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
90A051230
Cable, RS-232, Aux Port, POT, 12 ft
8-0737-11
Cable, RS-232, DB9S, Coiled, 8 ft
8-0736-03
Cable, RS-232, DB9S, External Power, Straight, 12 ft
8-0751-03
Cable, RS-232, DB9S, POT, 12 ft
8-0736-17
Cable, RS-232, DB9S, POT, 8 ft
8-0751-02
Cable, RS-232, External Power, 9D, S, 12 ft
8-0736-80
Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified)
90A052065
Cable, USB, Type A, Power Off Terminal, Coiled, 12 ft
8-0734-16
GFS ADAPTER PLATE, DSM04XX
901340002
ADAPTER, POWER PLUG, AUSTRALIA
90ACC0309
ADAPTER, POWER PLUG, EURO, 2 PIN
90ACC0307
ADAPTER, POWER PLUG, UK
90ACC0308
ADAPTER, POWER PLUG, US/JAPAN
90ACC0306
Kit, Power Supply, 5VDC, AC/DC, 120V Brick with UK Adapter
11-0389
Kit, Power Supply, 5VDC, AC/DC, 220V Brick with Europe Adapter
11-0388
Kit, Power Supply, 5VDC, AC/DC, Brick with Australia Adapter
11-0390
Kit, Power Supply, 5VDC, AC/DC, Brick with China Adapter
11-0391
Kit, Power Supply, 5VDC, AC/DC, Brick with NA Adapter
11-0387
Power Cord, 2-Pin, EU
90ACC1885
Power Cord, 2-Pin, UK
90ACC1887
Power Cord, 2-Pin, US
90ACC1886
Power Supply, 5VDC, includes 2 pin power cord adapter, no power cord
90ACC0287
